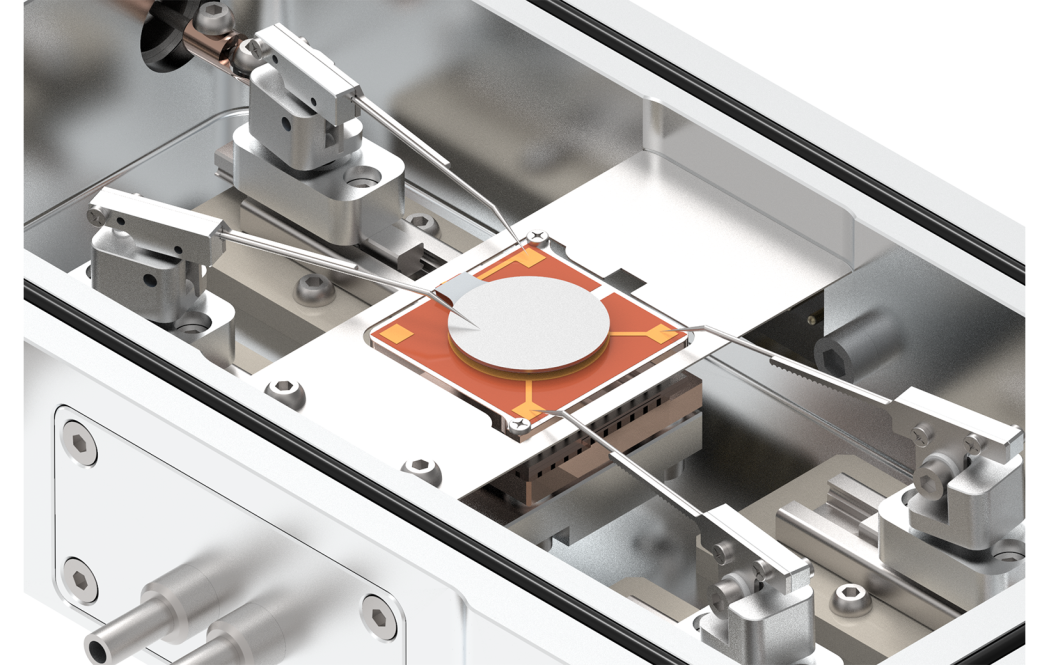

polymer probe Image

Polymer

Custom polymer capacitance measurement fixture ensuring precise dielectric analysis under controlled conditions.

Unfold

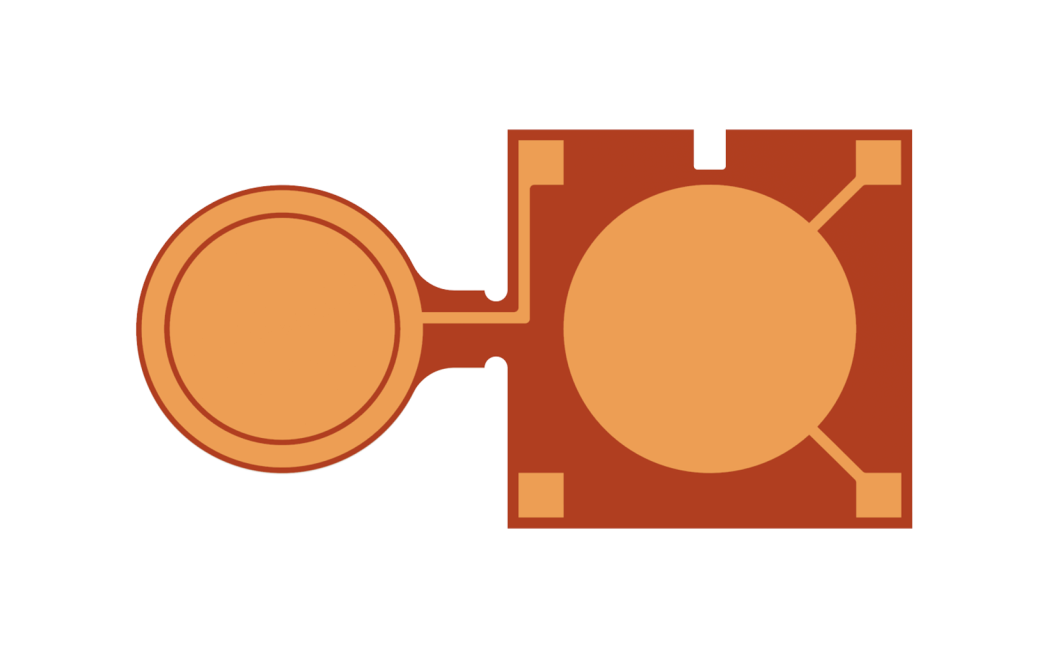

polymer unfold Image

Fold

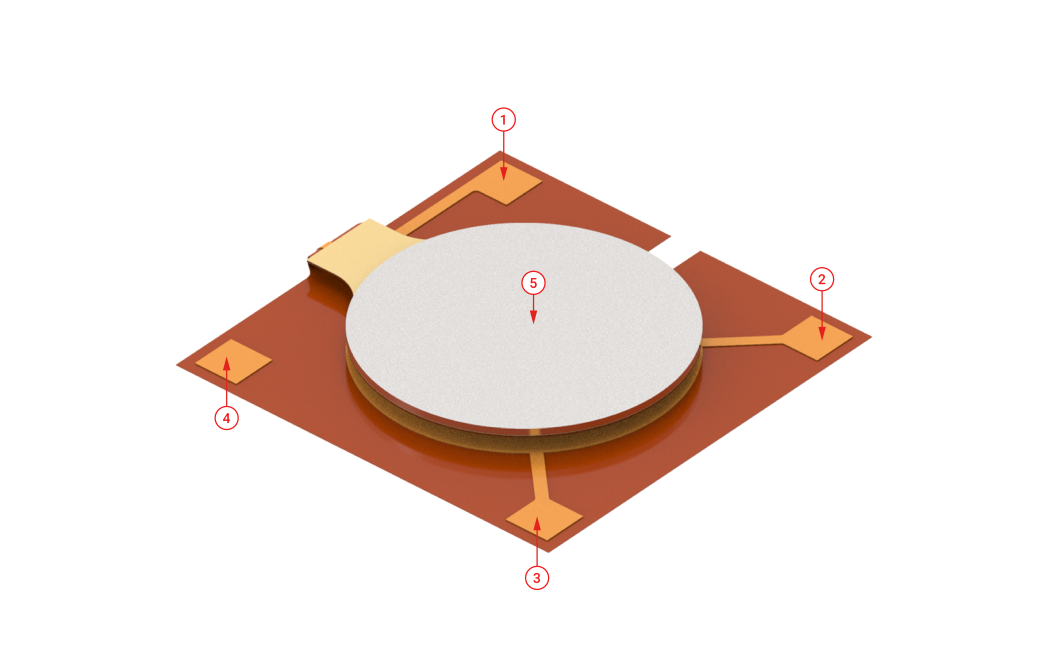

polymer fold_numbering Image

① Contact pad for top electrode
②,③ Contact pad for bottom electrode
④ Contact pad for guard ring
⑤ Metal plate to keep the top electrode flat
