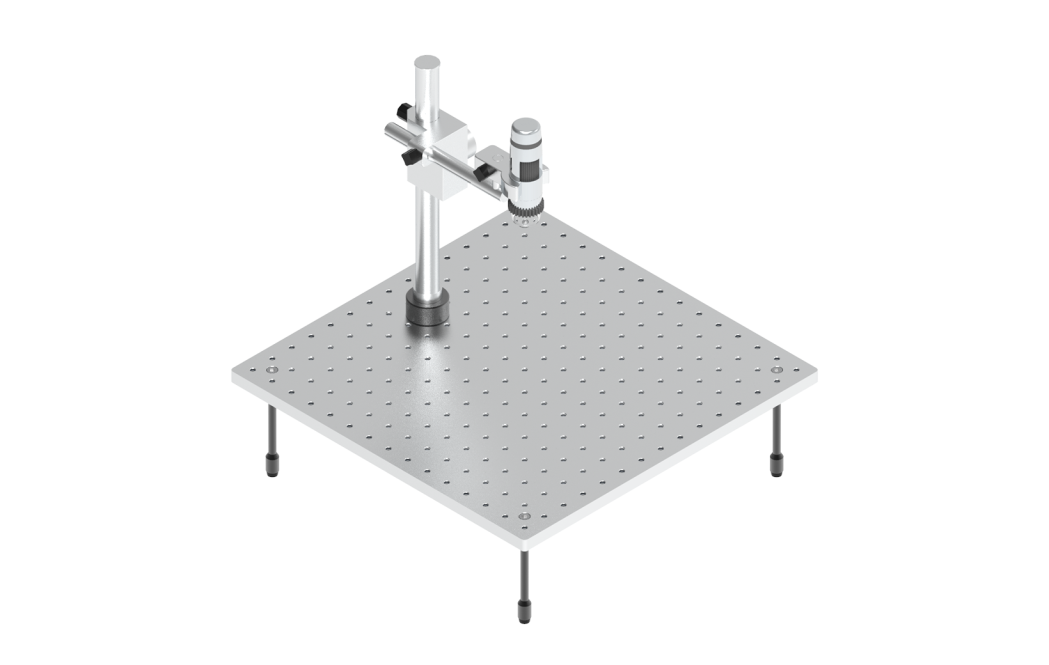

Breadboard & Digital Microscope

Compact optical table designed to fit chamber dimensions with an optional digital microscope

Breadboard
Dimensions 380 × 380 mm
Digital Microscope
Model DM-5MP
Resolution 5M pixels (MJPEG codec 2592 × 1944 resolution)
Magnification 10 ~ 140X
Sensor Color CMOS
Frame rate 10fps @5MP/3MP/2MP
25fps @130M pixels
30fps @VGA
Lighting 8 LED (on/off)
Measuring function Available
Calibration function Available
Weight 125 g
Dimensions 10.5(l) × 3.2(w) cm

Set up

StretchingTest

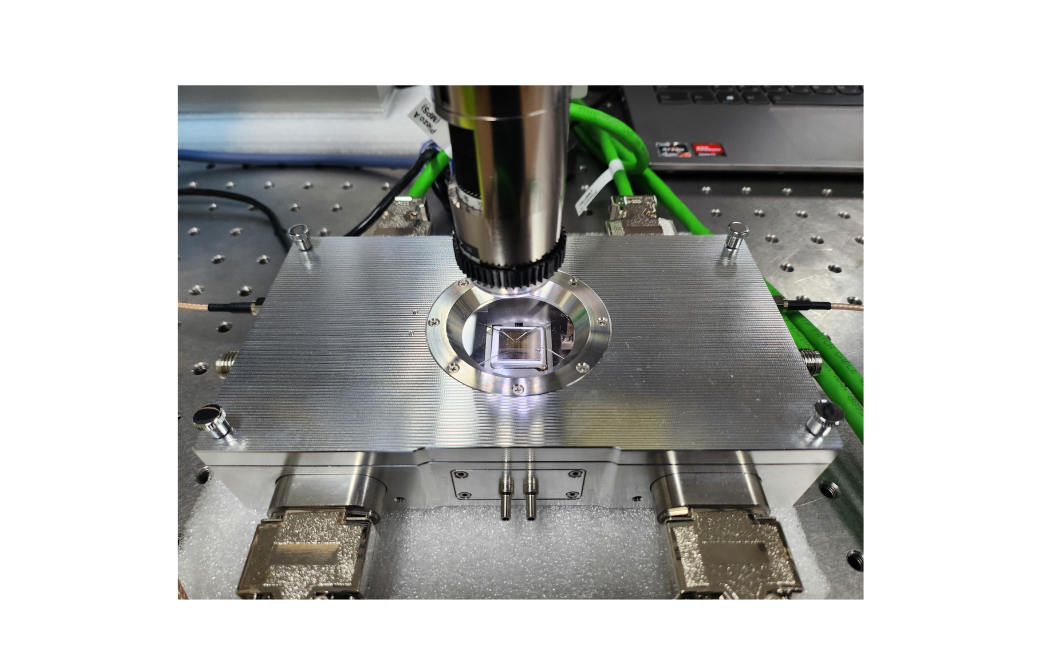

Figure. PZMPS-PT and Dino-lite Microscope Setup Example.
