Probe Head Chamber - Pogo pin

Customizable pogo pin probe head for stable and precise direct-contact measurements.

Temperature Range -30 – 150 °C
Maximum Cooling / Heating Rate 30 °C/min
Temperature Accuracy 1) ±0.1 °C
Temperature Resolution 0.1 °C
Chamber inner volume ≈ 190 cc
Sample Stage Dimension 30 × 30 mm
Number of Pins 40 pins
Available Pitch between Pins > 2.5 mm
Tip Diameter of Pin 1.0 mm
Middle Stroke 0.7 mm
Force @ Mid. Stroke 60 g ±20g
Durability 100,000 to 1,000,000 cycles @ mid. stroke
Maximum Current 6.5A @ 30 °C Temperature rise
Maximum Contact Resistance 20 mΩ

1) This accuracy is based on the temperature value of the sensor inside the heater.
* It could be customized: Number/position of pins, sample stage size, shape of probe head, etc.

Dimension

(Unit: mm)

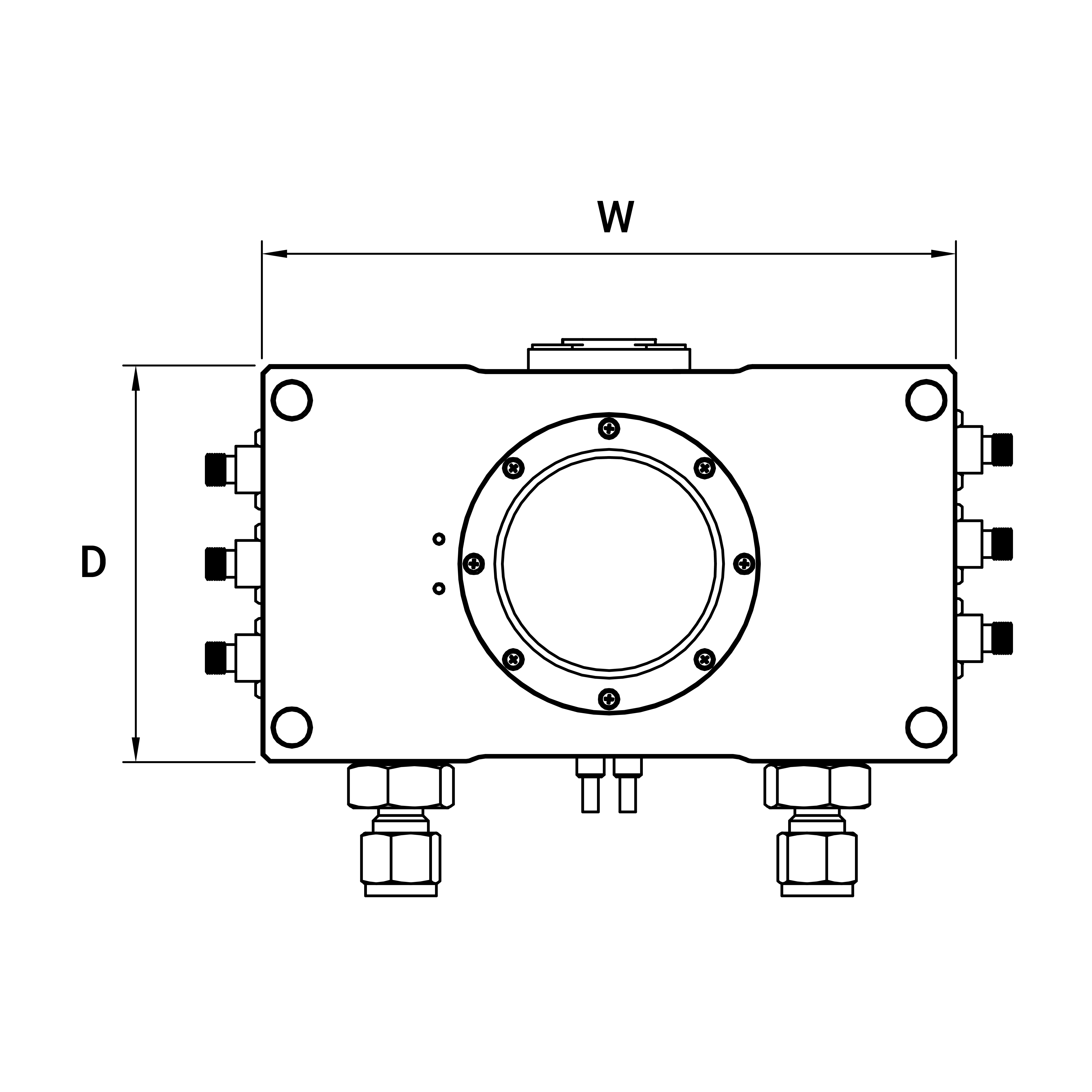

MPS-6ch's dimension top view

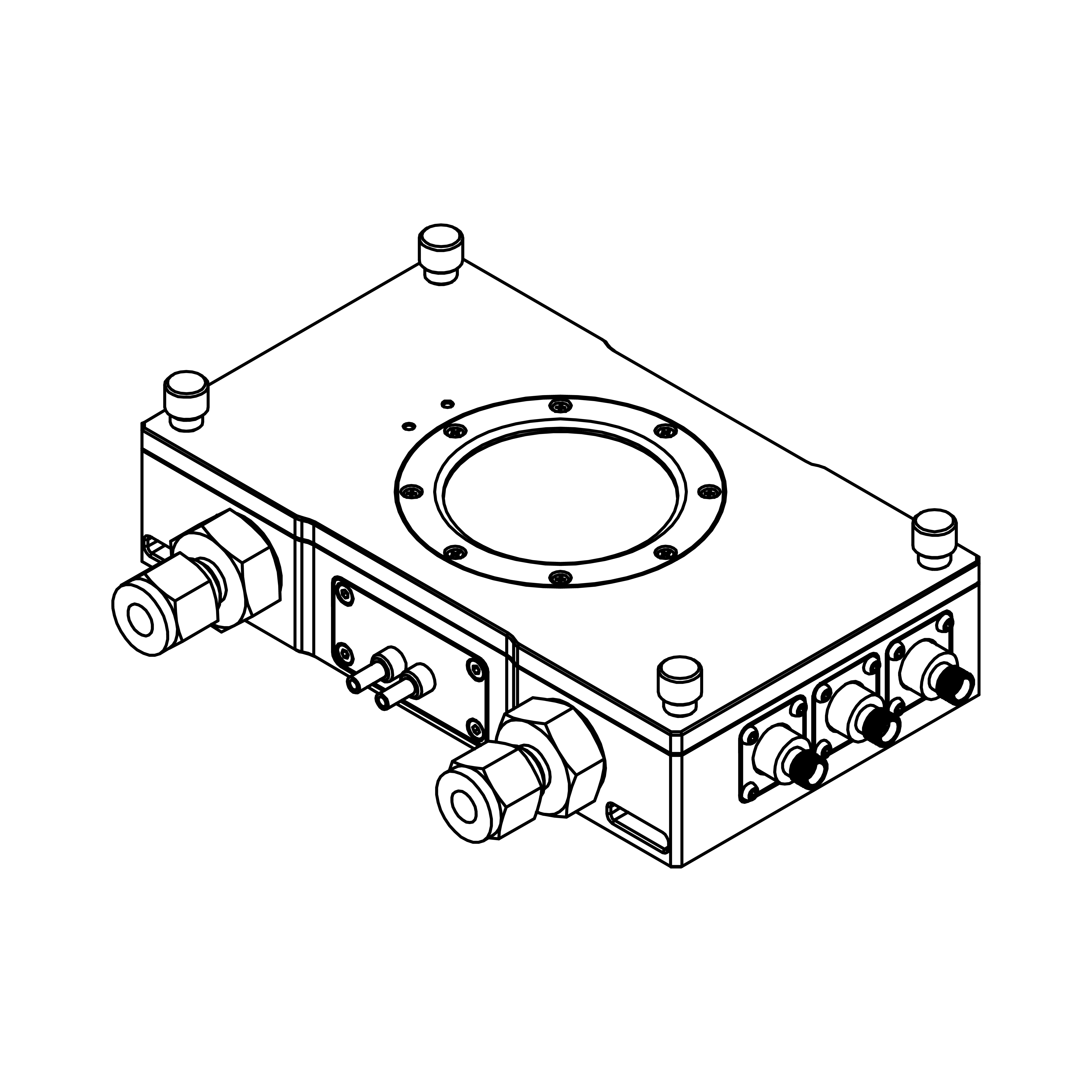

MPS-6ch's dimension 3D view
Top 3D

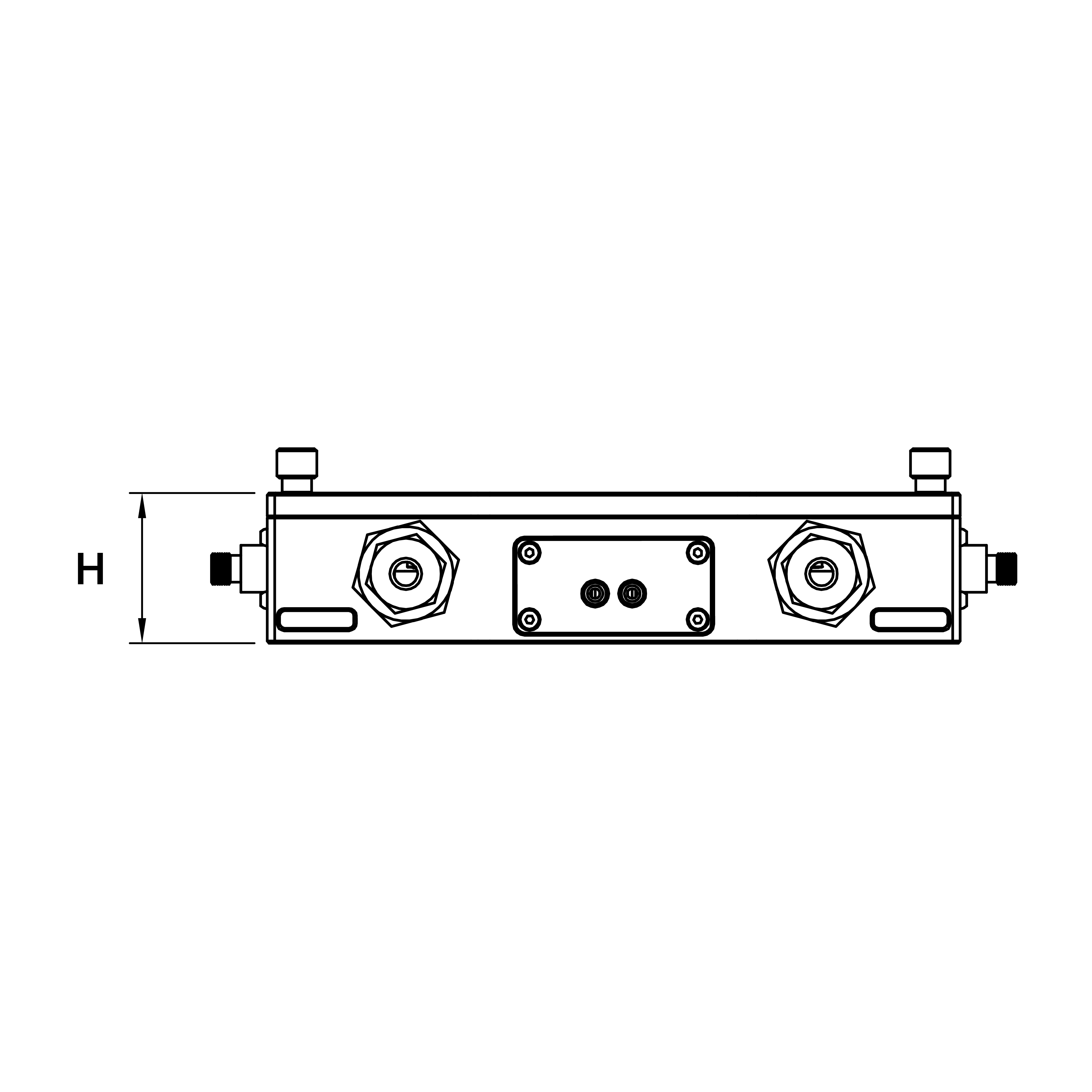

MPS-6ch's dimension Front view

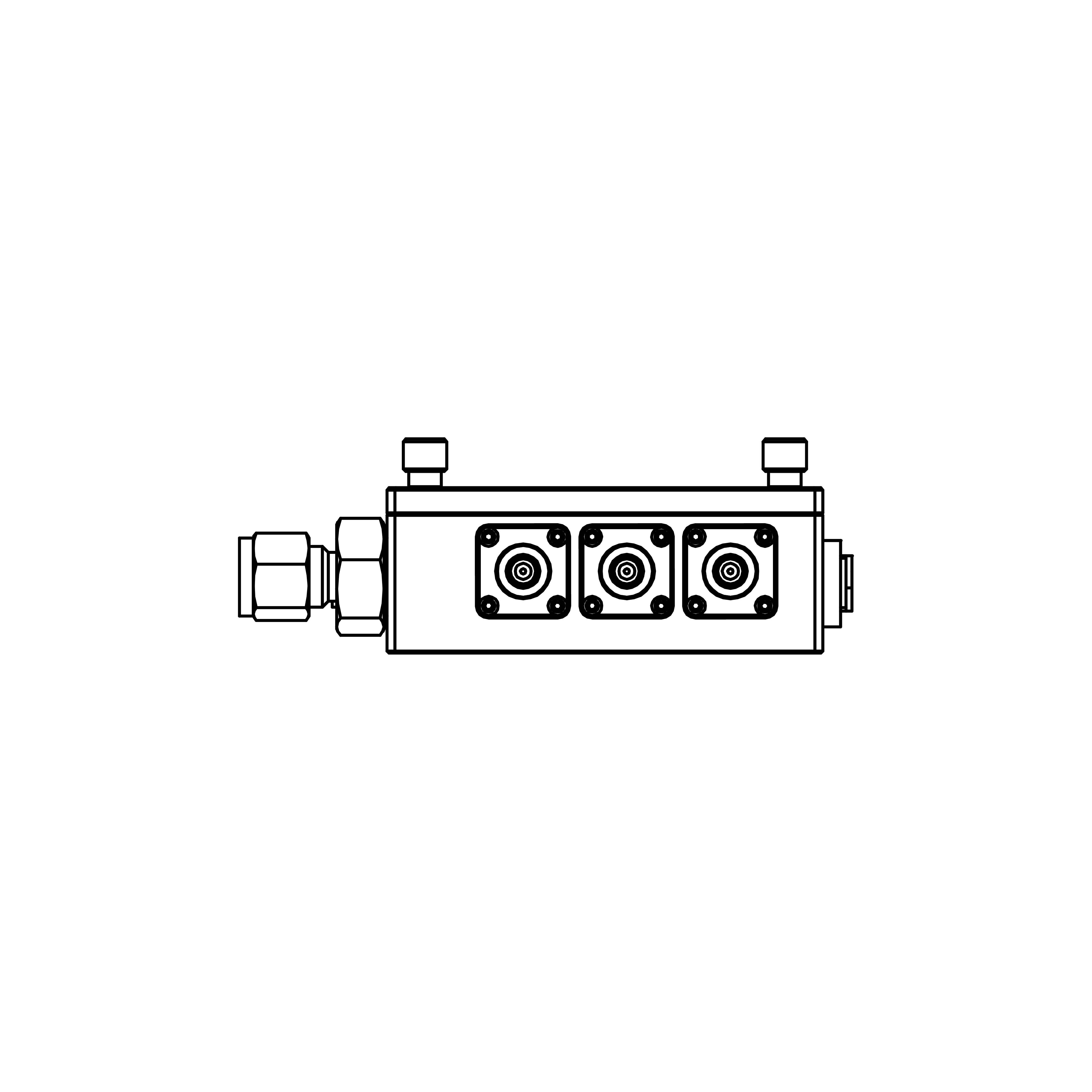

MPS-6ch's dimension Right view
Front Right
Dimensions
W 140
D 80
H 30.3
