Micro Probe System for Thermoelectric Devices (Dual Peltier Model)

Dual Peltier micro probe system enabling temperature differential measurements using two independent sample stages.

Temperature Range -40 – 200 °C
Max. Ramping Rate 60 °C/
Temperature Accuracy ±0.1 °C
Temp Resolution ±0.1 °C
Stage size 19 × 16 mm
Adjustable Gap 0 ~ 3 mm
Stage transmission hole Ø 2 mm
Temperature Range -40 ~ 200 °C
Stage Material Rhodium coated copper
Window * Ø 43 mm (Fused Silica)
Number of Probes in Standard Chamber 4
Probe Module Smart Tracking Probe
Probe Module Stroke (X-Axis) 12 mm
Probe Tip Tungsten Probe
Probe Tip Diameter 50 or 100 µm
Vacuum Test < 10E-3 mbar at RT (With Rotary Pump)
< 10E-5 mbar at RT (With Turbo Pump)
Vacuum & Vent Line Fitting Basic 1/4, 1/8" Swagelok Tube Fitting
Optional NW16
Leakage Current < 100 pA (Coaxial)
< 100 fA (Triaxial)
Maximum DC Voltage 300 V
Maximum Current 1000 mA
Maximum Frequency 300 MHz (< 3 dB)

* For comprehensive information on windows, please refer to the window selection guide for optical covers.

Dimension

(Unit: mm)
MPS-4ch's dimension top view
MPS-4ch's dimension 3D view
Top 3D
MPS-4ch's dimension Front view
MPS-4ch's dimension Right view
Front Right
Dimensions 4ch
W 140
D 70
H 30.3

Technical Data

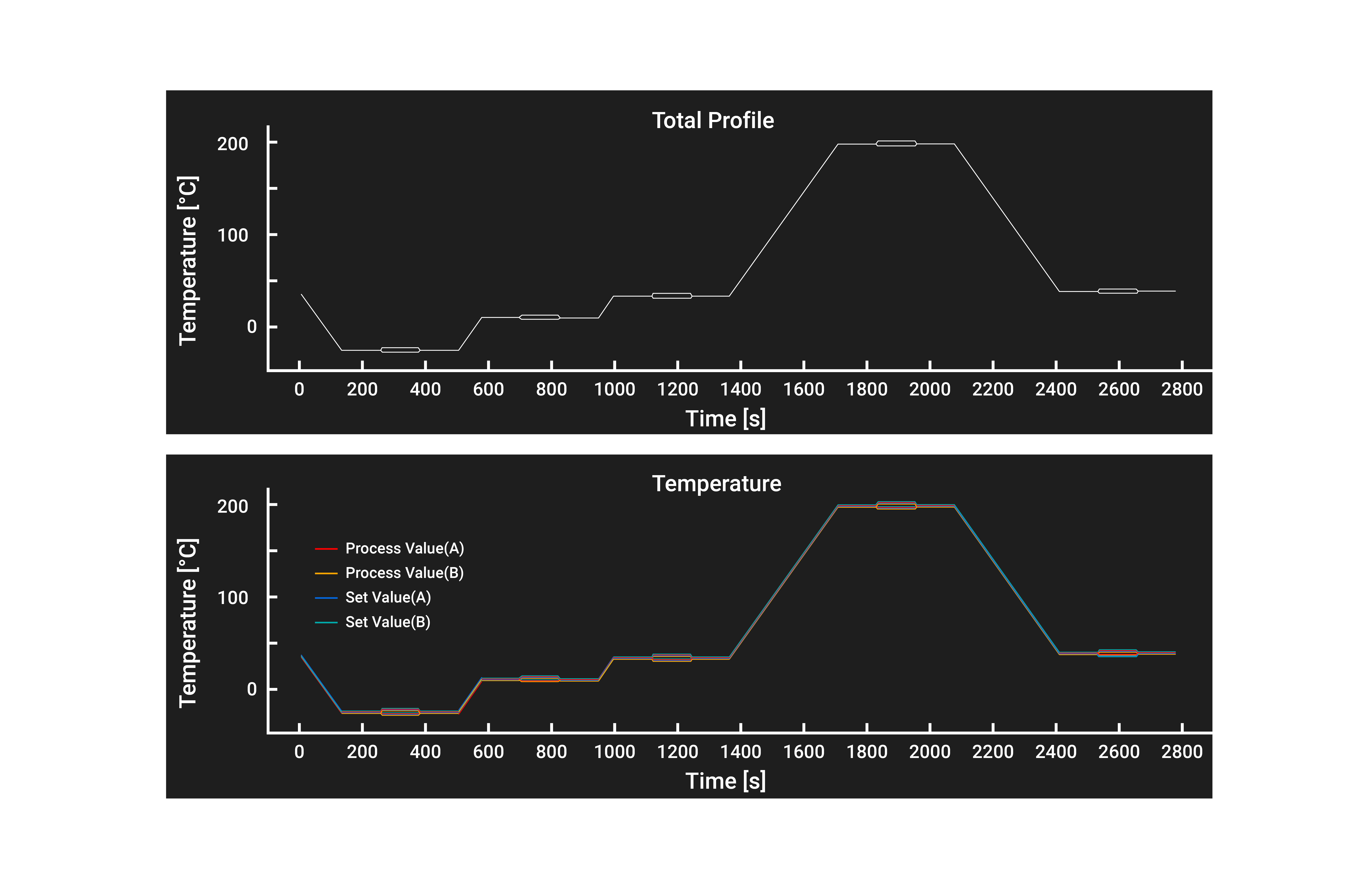

DPT data Image
