Micro Probe System for THz Signal Transmittance Measurement

This probe system is perfectly suited for terahertz transmission experiments. It features a temperature-controlled sample holder with dual transmission apertures. It allows for simultaneous comparative analysis of test and reference samples. The unique Nextron probe ensures stable electrical probing and sample fixation, even in vertical orientations.

Dimension 140(l) × 70(w) × 31.6(h) mm
Stage size 32 × 18.2 mm
Stage transmission hole Ø 2 mm
Temperature Range 80 K~RT(LN model)/ -30 ~ 150 °C(PT model)
Temperature Accuracy ±0.1 °C
Temp Resolution ±0.1 °C
Max. Ramping Rate 30 °C/min
Top and bottom window Ø 43 mm, Fused silica 2T

Structure

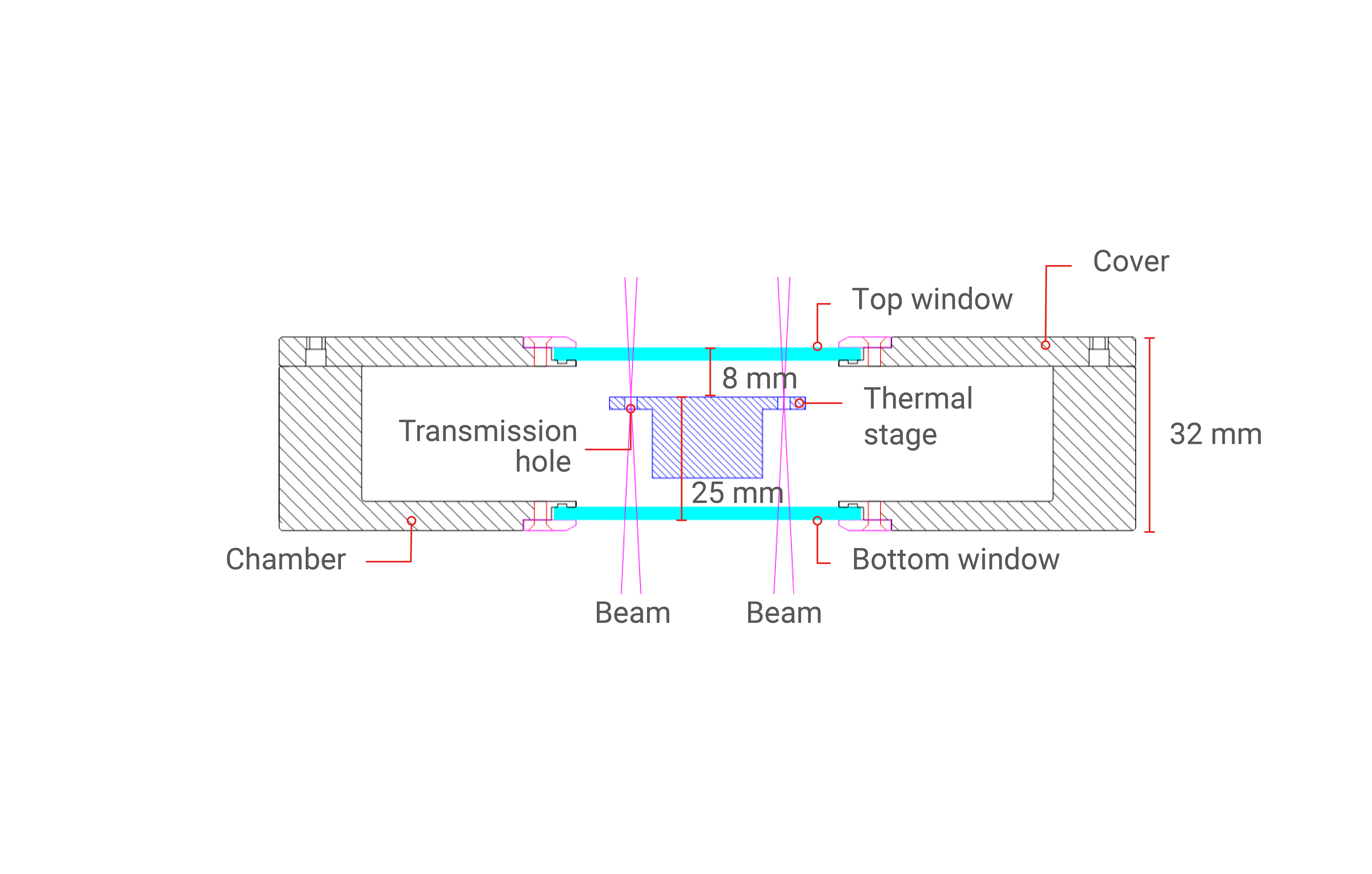

LN2H Structure

Technical Data

LN2H Temperature performance

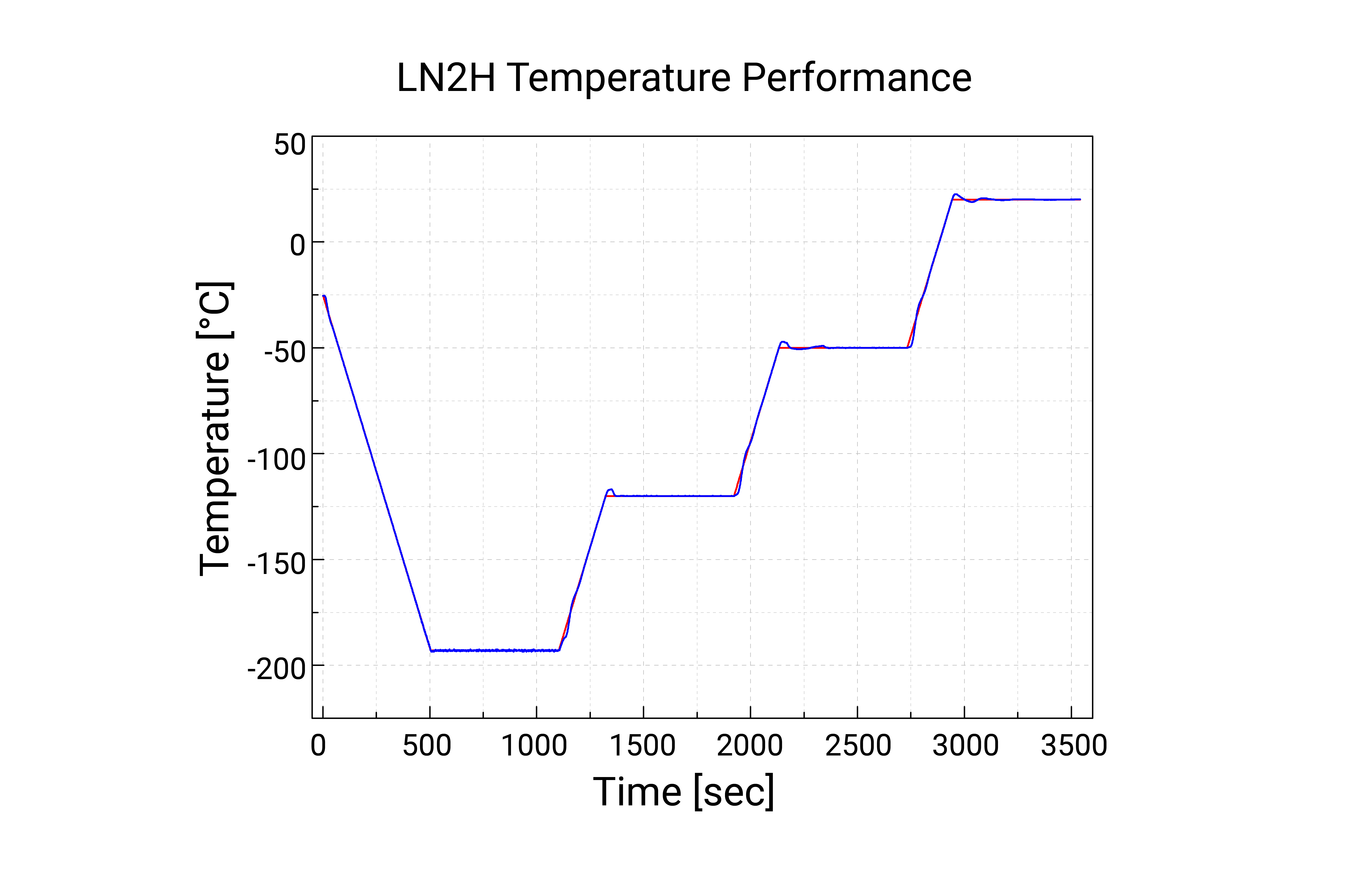

Figure.N2H Chamber – Temperature Stability Performance from -193°C to Room Temperature (RmT)

Setting

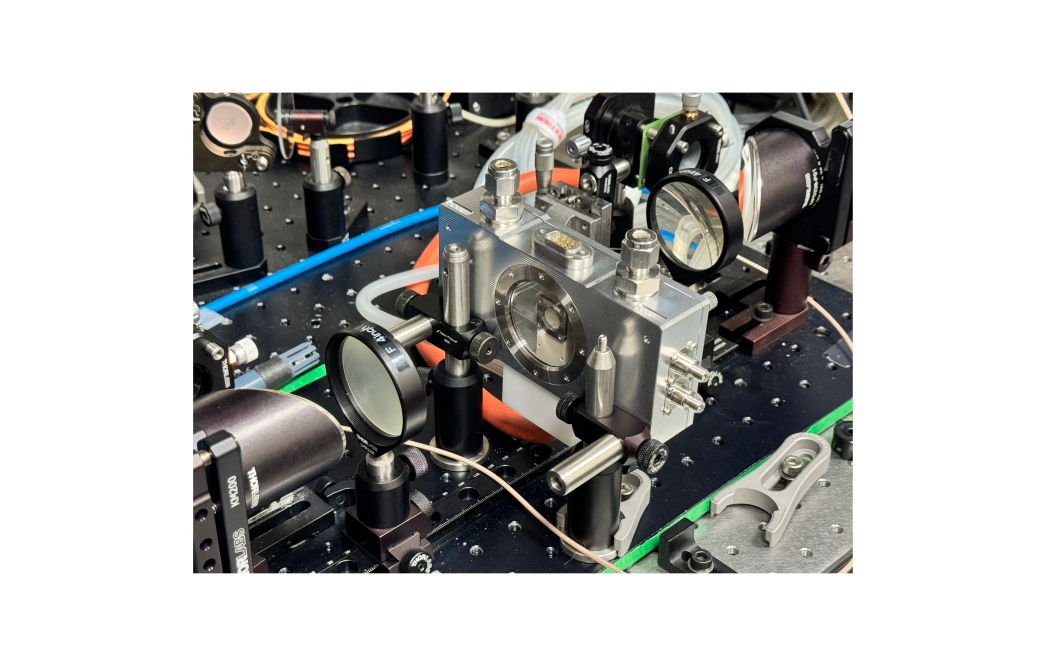

LN2H setting
