PZMPS-LN

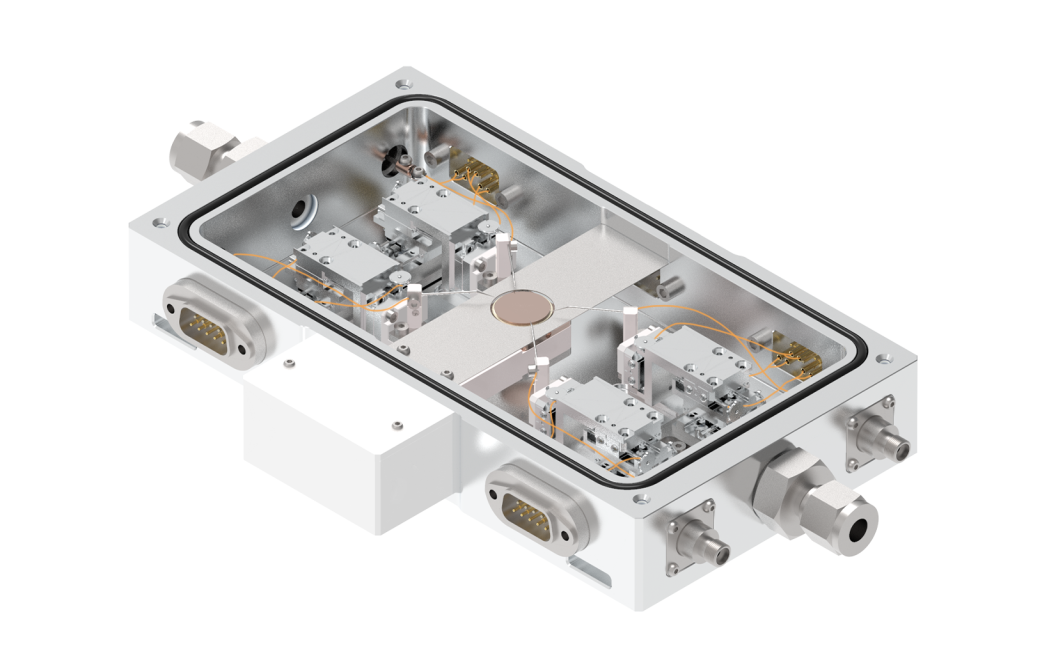

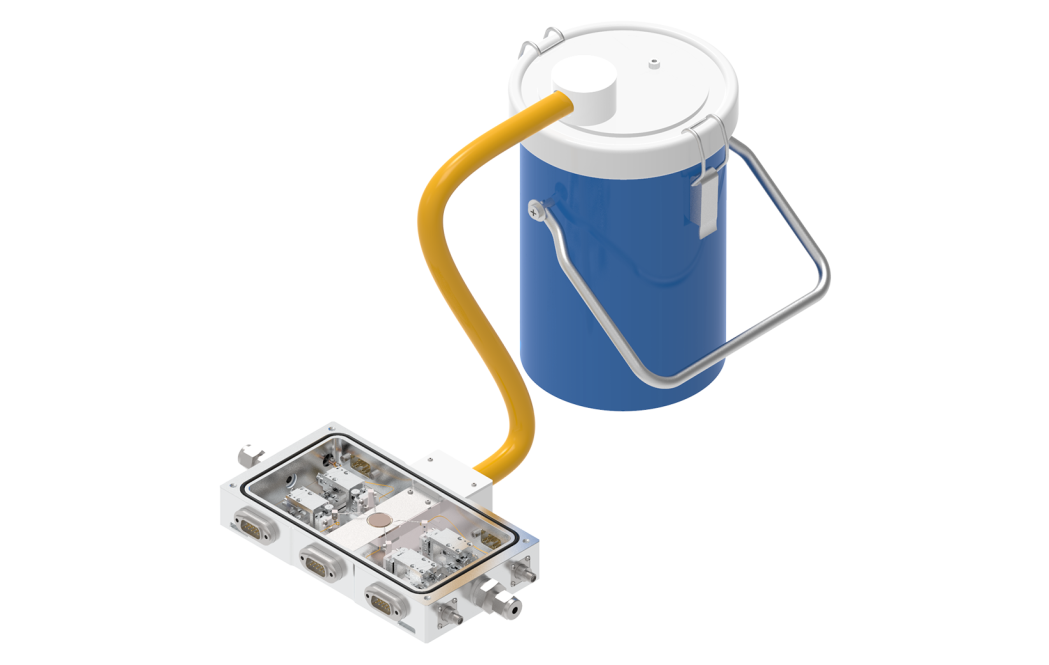

Piezo-driven low-temp probe system (80K) with LN2 circulation and vacuum control.

Temperature Range -193 – RT °C (80 K – RT )
Maximum Cooling / Heating Rate 20 °C/min
Temperature Accuracy ±1 °C
Temperature Resolution 0.1 °C
Sample Stage Dimension Ø 14 mm
Stage Material Copper
Window * Ø 43 mm (Fused Silica)
Number of Probes in Standard Chamber ** 4, 8
Probe Module Piezo Driven XYZ module
Piezo Module Stroke (X ,Y, Z Axis) 8 × 8 × 3 mm
Piezo Module Holding Force 150 – 200 gf
Probe Tip Tungsten Probe
Probe Tip Diameter 50 or 100 µm
Vacuum Test 10E-3 mbar at RT (With Rotary Pump)
10E-4 mbar at RT (With Turbo Pump)
Vacuum & Vent Line Fitting Basic 1/4, 1/8" Swagelok Tube Fitting
Optional NW16
Leakage Current < 100 pA (Coaxial)
< 100 fA (Triaxial)
Maximum DC Voltage 300 V
Maximum Current 1000 mA
Maximum Frequency 300 MHz (< 3 dB)

* For comprehensive information on windows, please refer to the window selection guide for optical covers.
** Customization is available for the number of probes.

(Unit: mm)

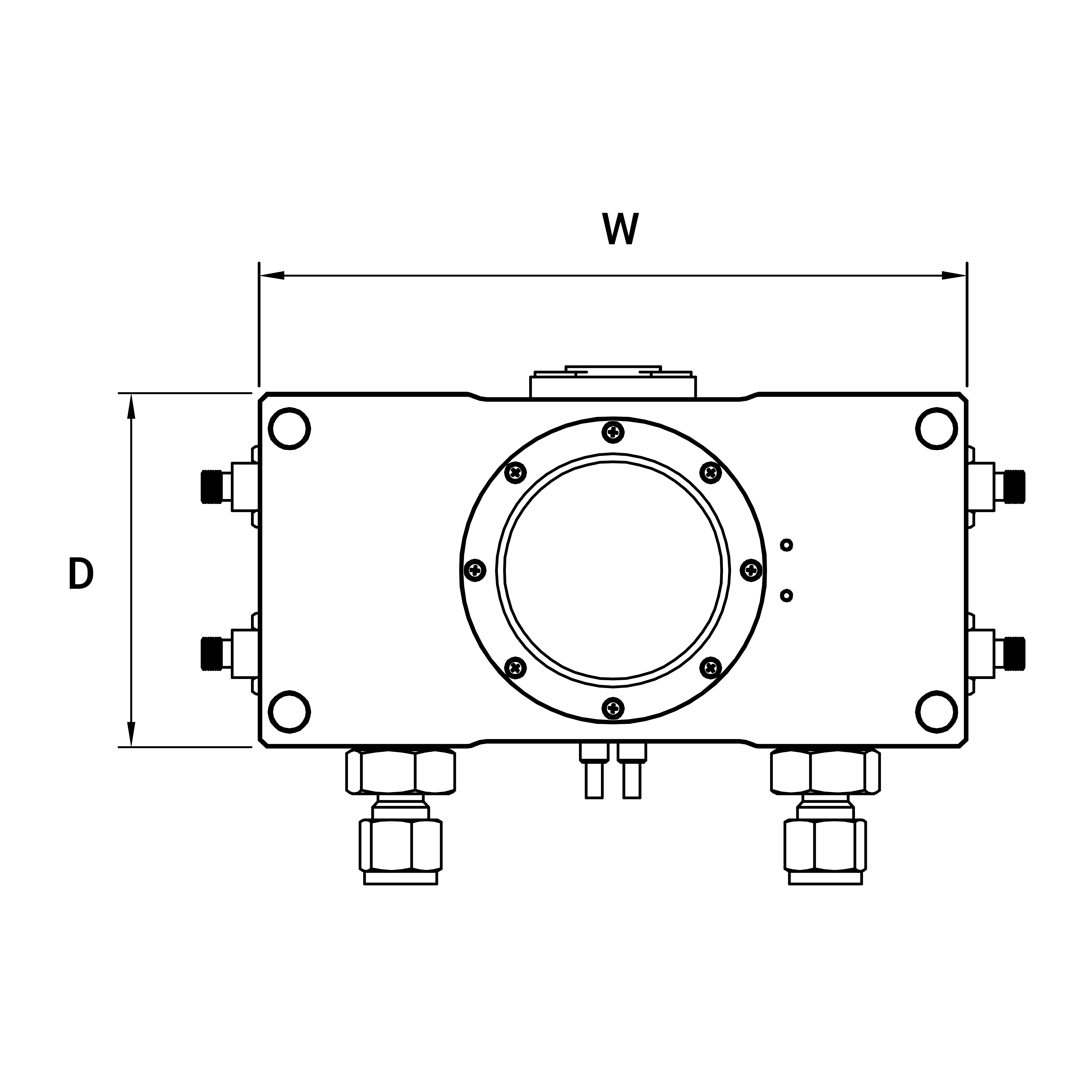

PZMPS-4ch's dimension top view

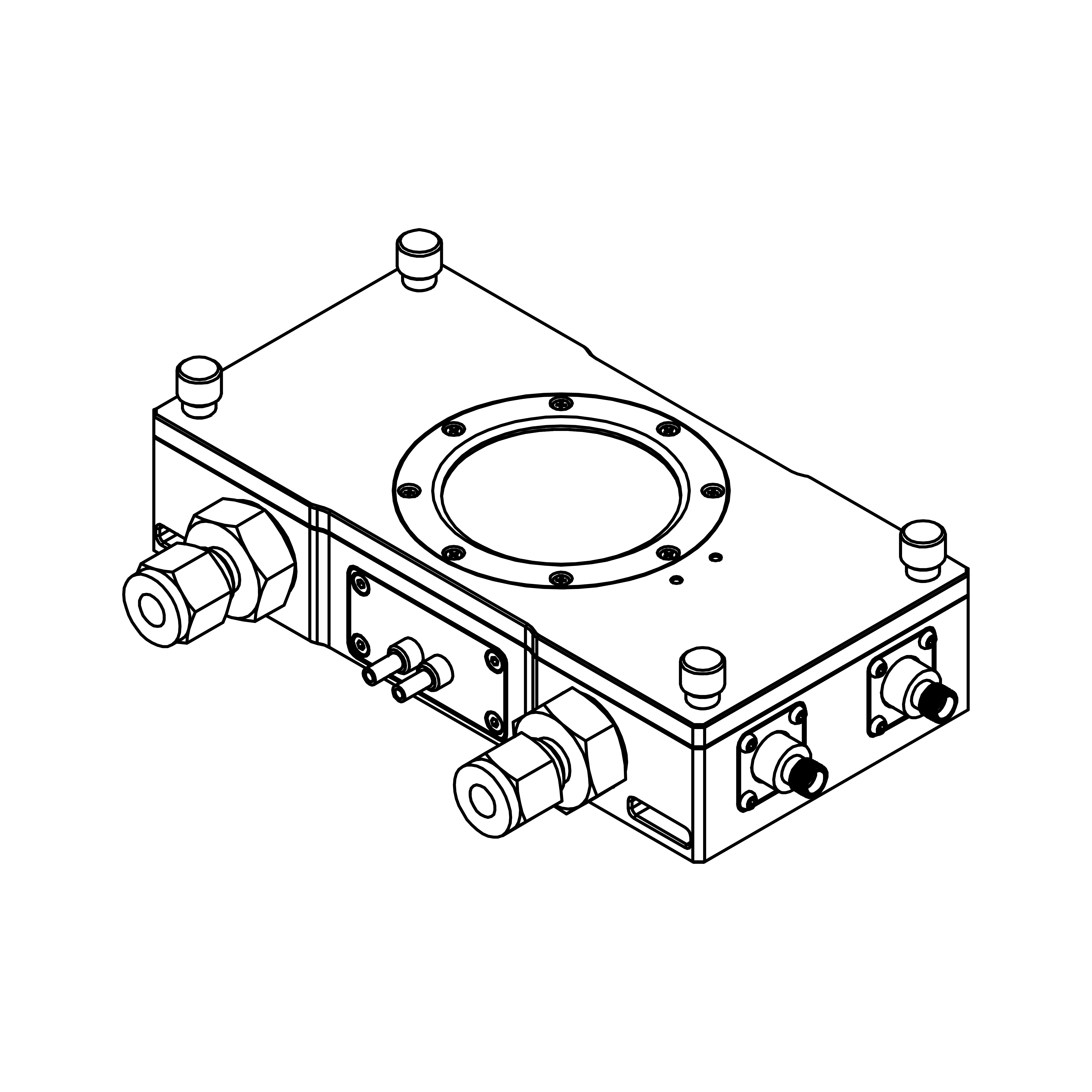

PZMPS-4ch's dimension 3D view
Top 3D

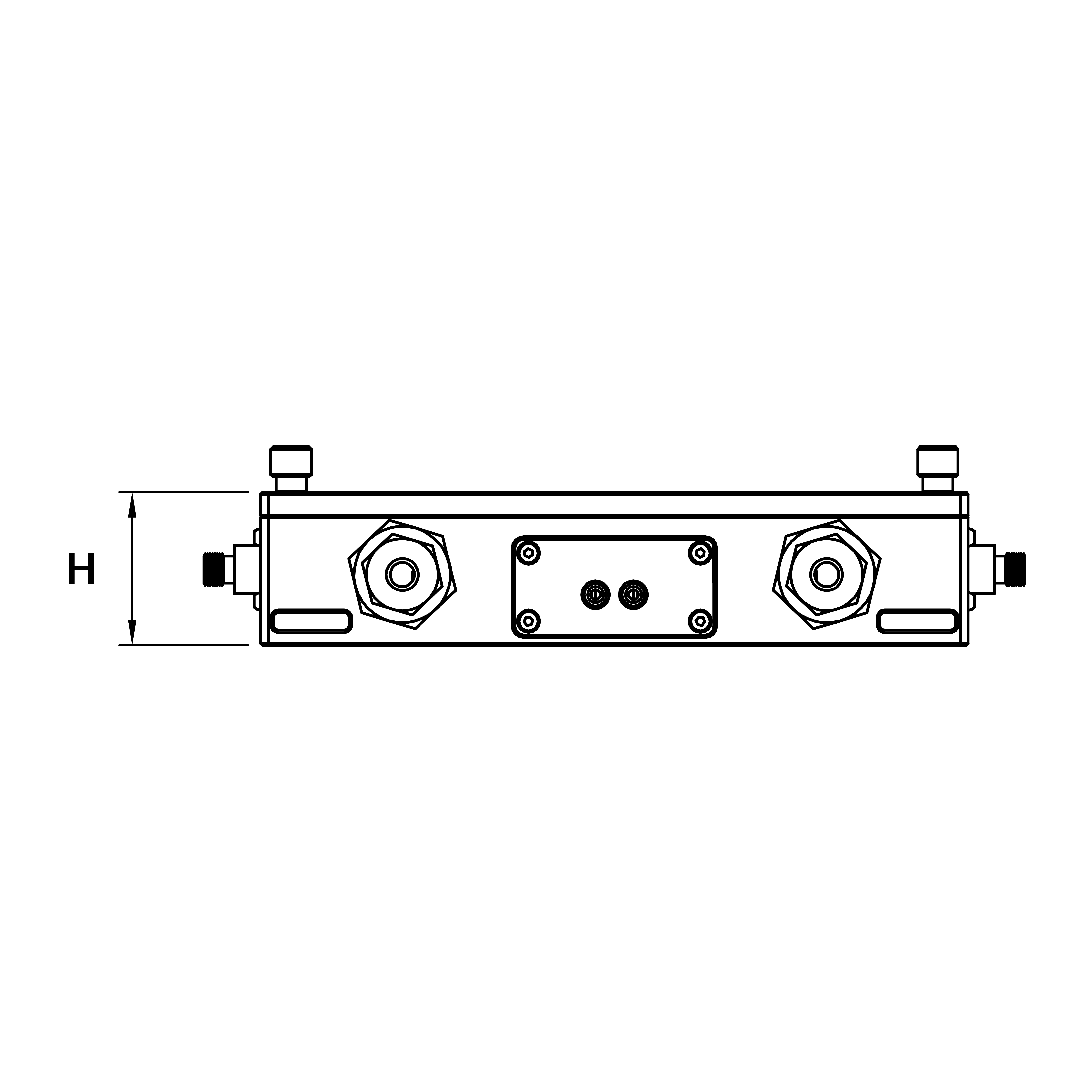

PZMPS-4ch's dimension Front view

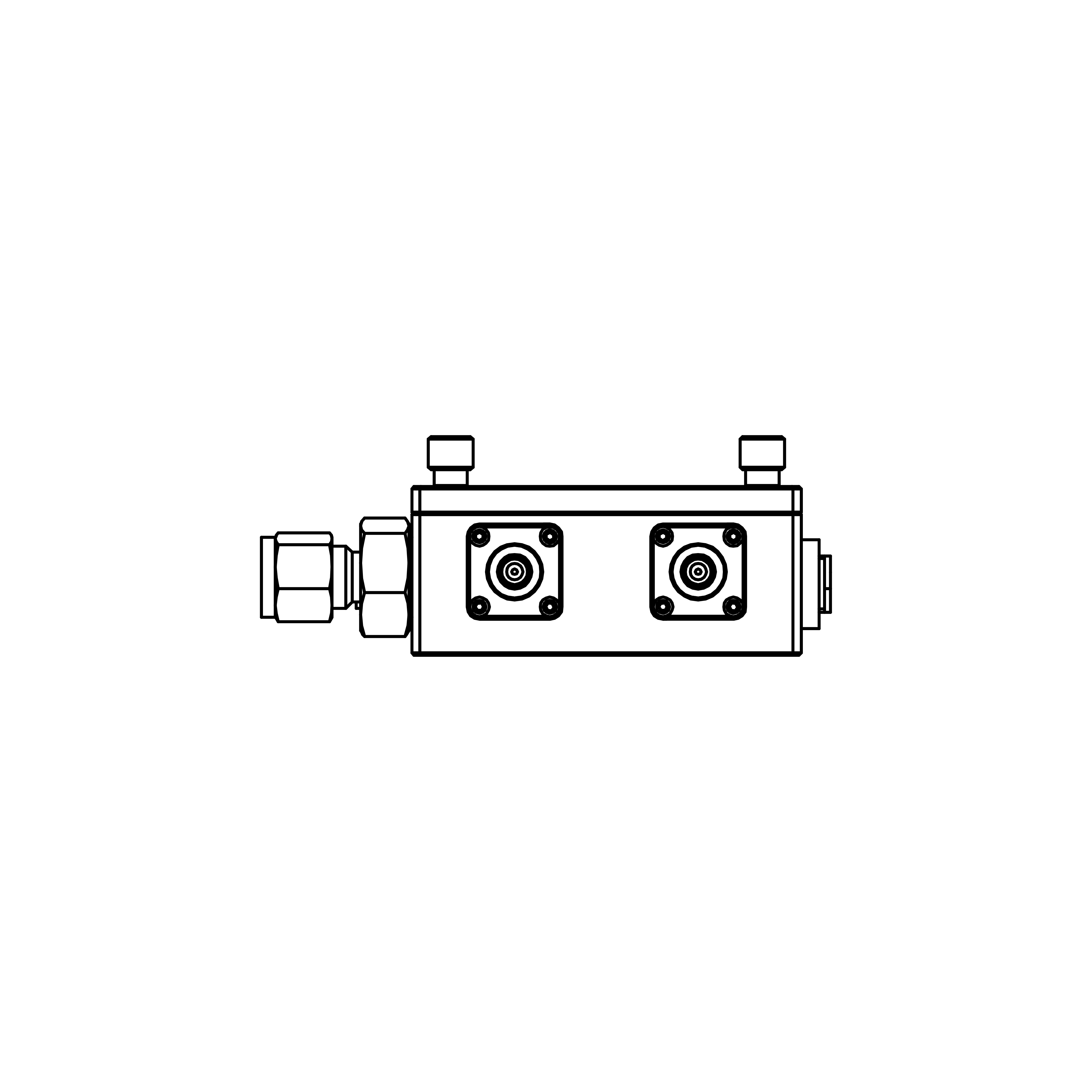

PZMPS-4ch's dimension Right view
Front Right
Dimensions 4ch
W 180
D 99
H 33.3
(Unit: mm)

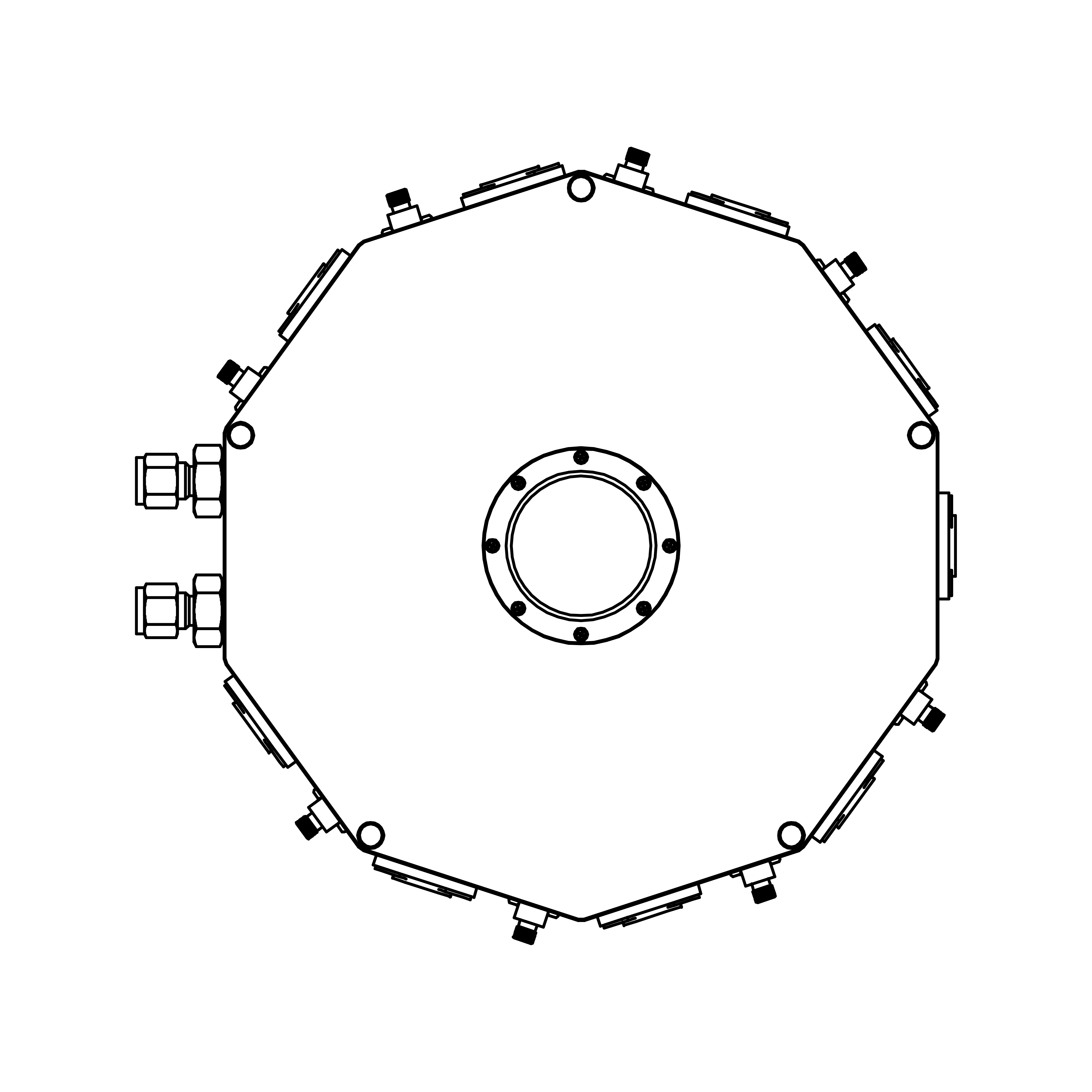

PZMPS-8ch's dimension top view

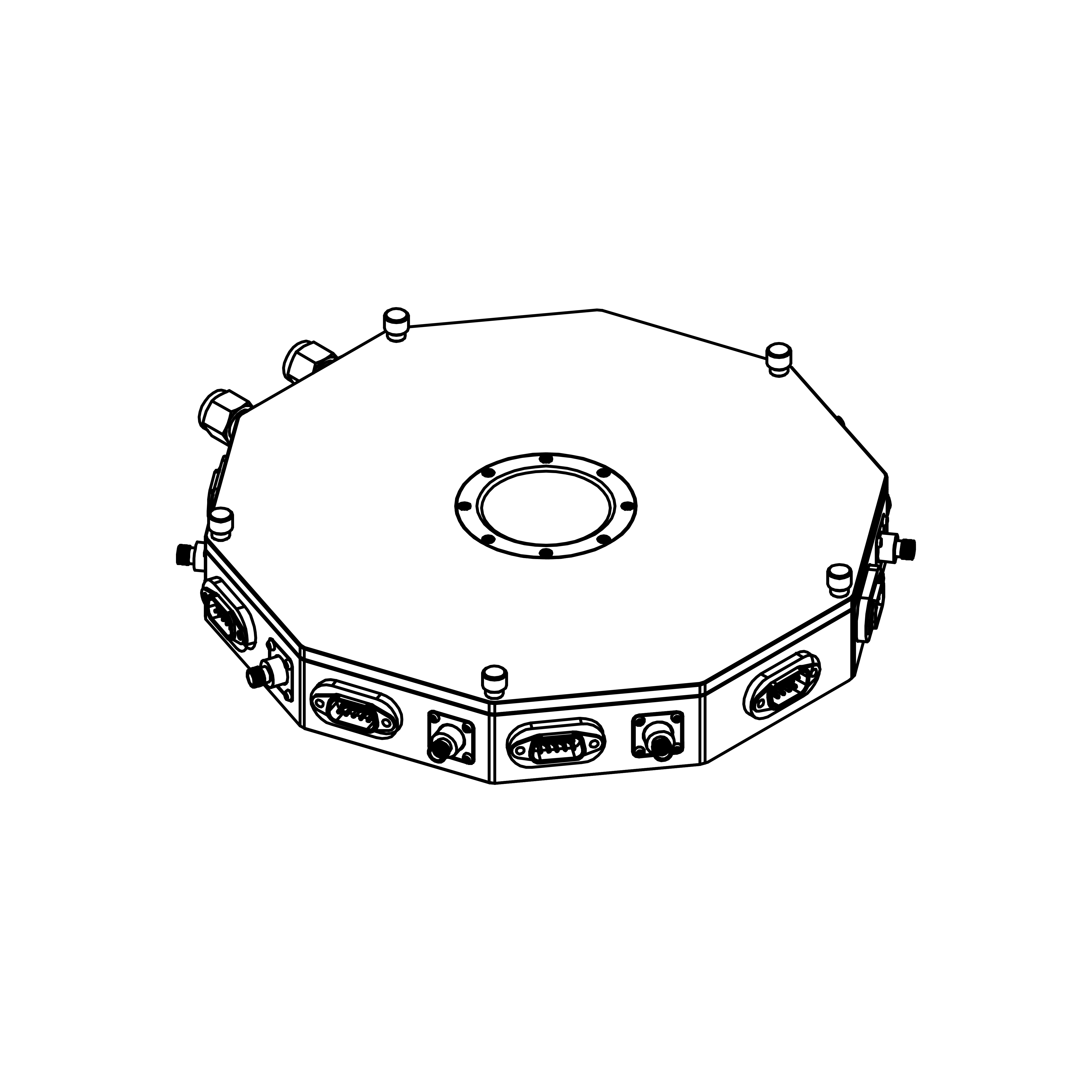

PZMPS-8ch's dimension 3D view
Top 3D

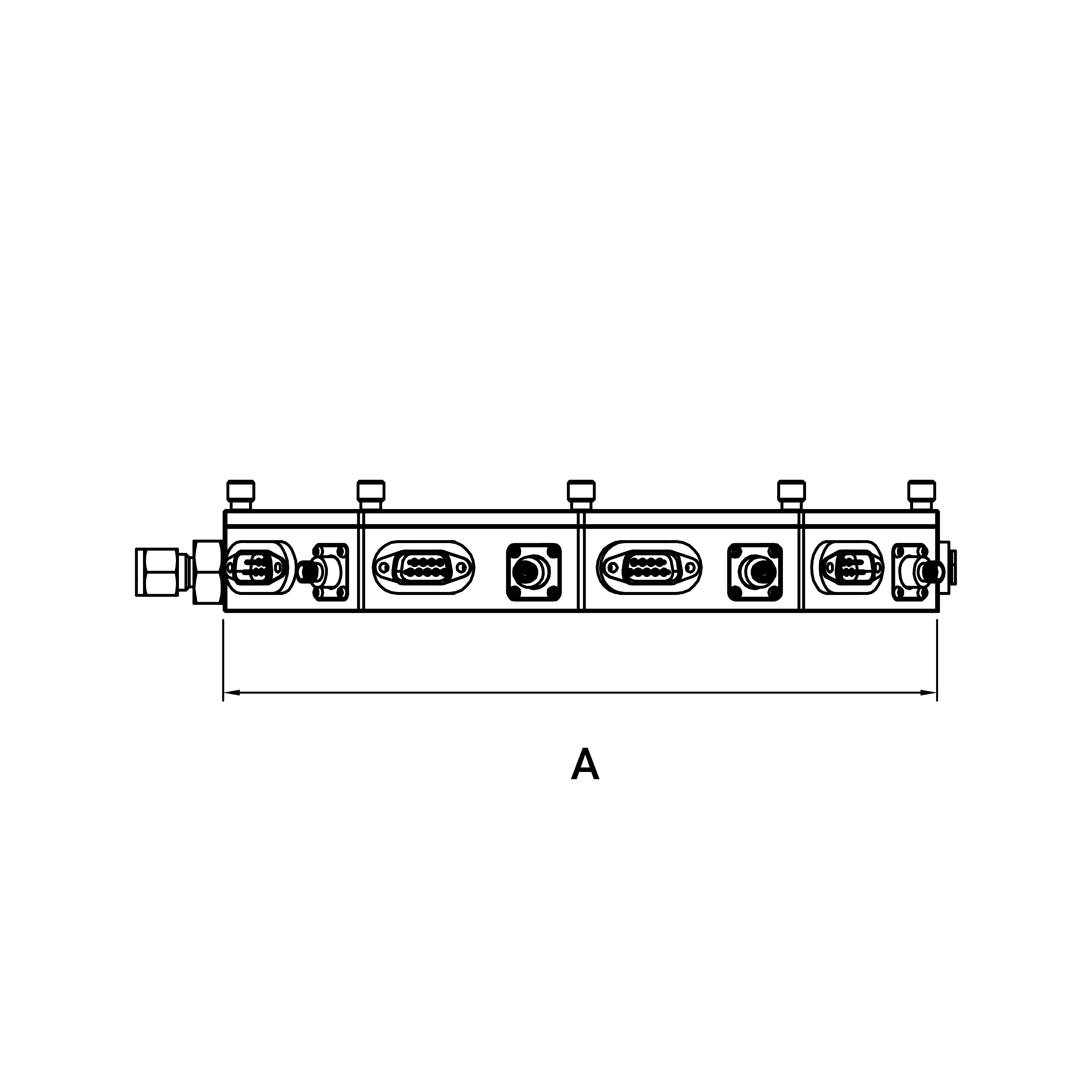

PZMPS-8ch's dimension Front view

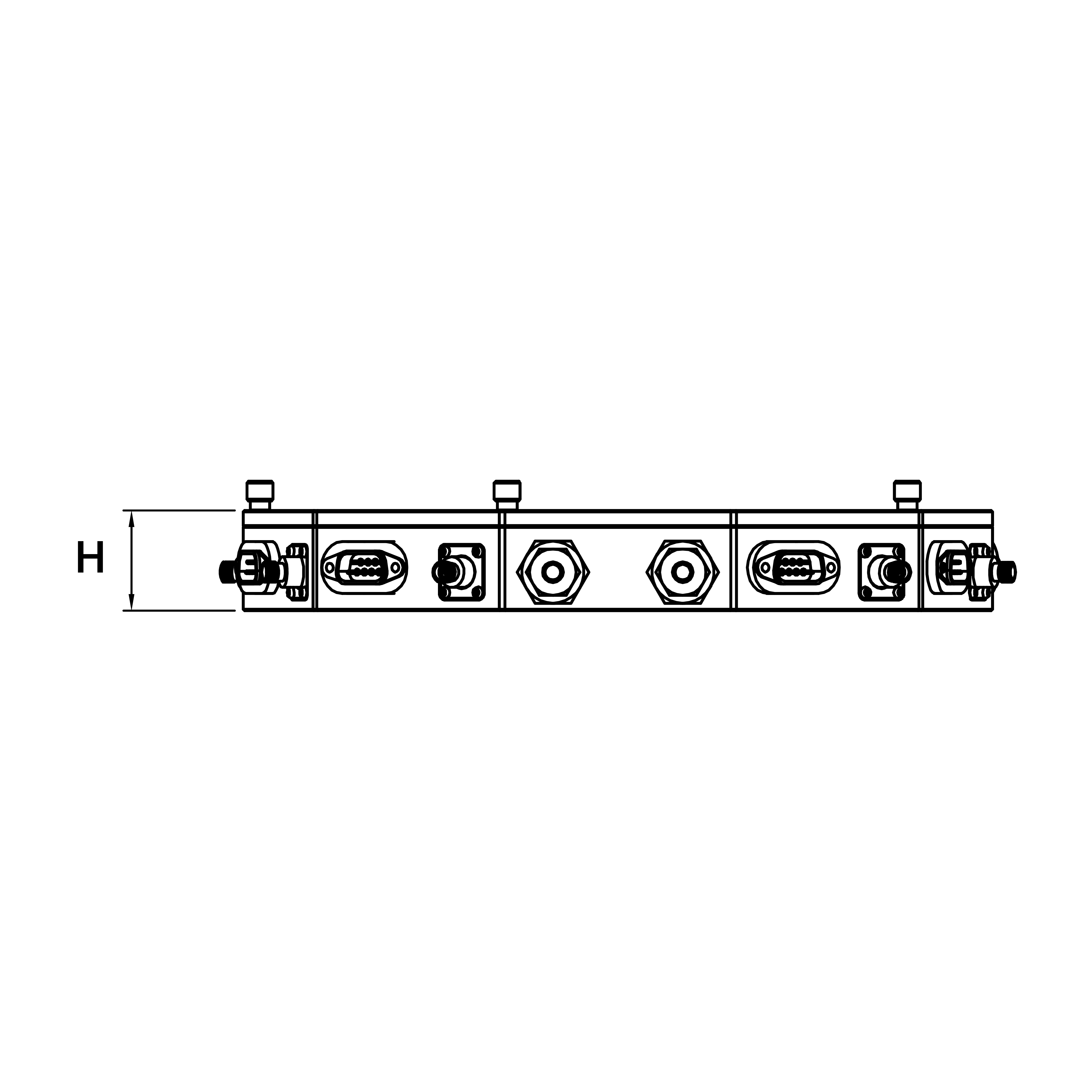

PZMPS-8ch's dimension Right view
Front Right
Dimensions 8ch
H 33.3
A 220

Video

Technical Data

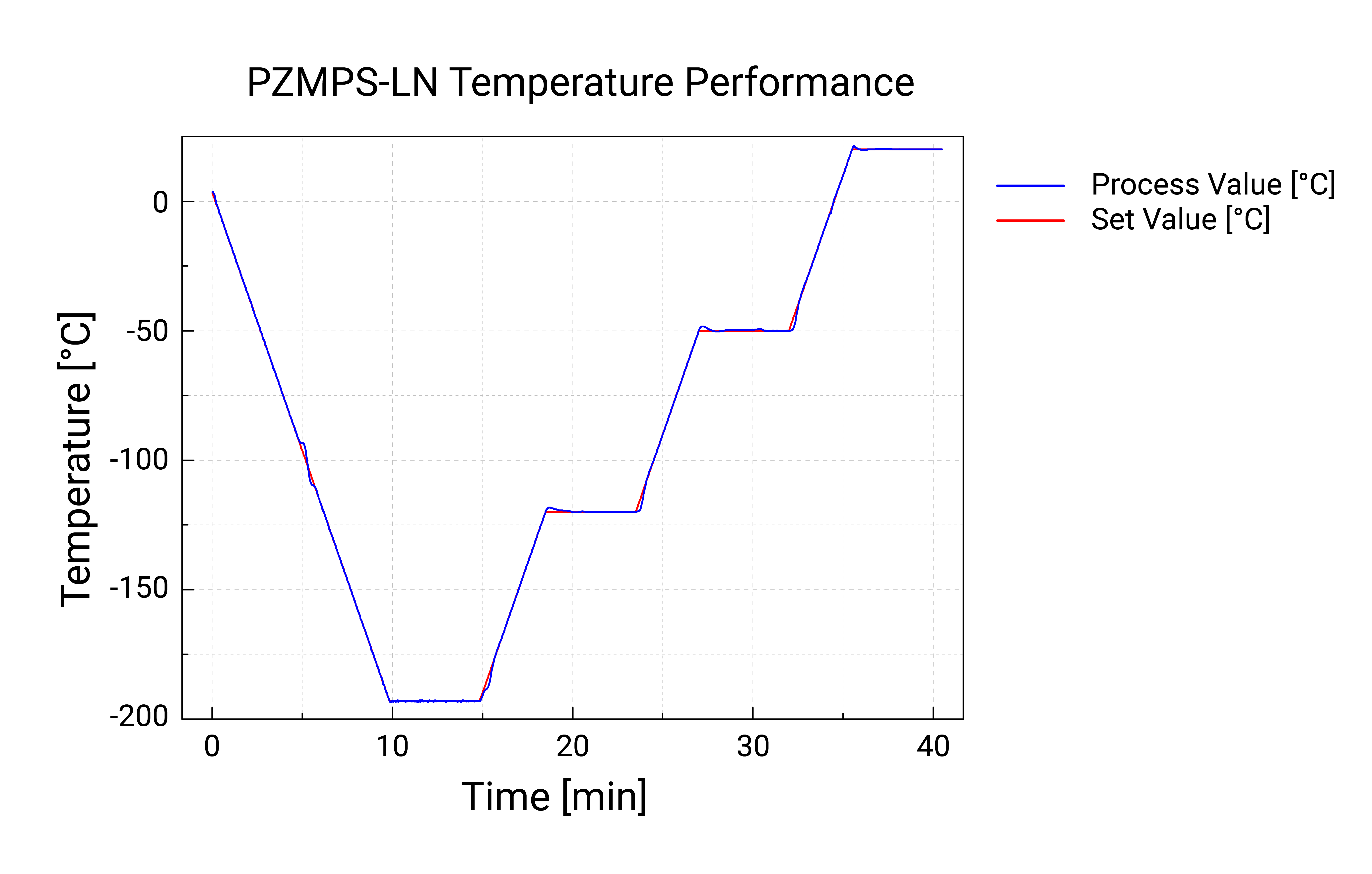

PZMPS-LN Temperature performance

Figure.Temperature Performance of the PZMPS - LN Model Across the Full Range of RT °C to -193 °C (RT – 80 K)
