PZMPS-CHU

Piezo-driven high-temp probe system (RT – 1000 °C) with optical access.

Temperature Range RT – 1000 °C
Maximum Cooling / Heating Rate 60 °C/min
Temperature Accuracy ±1 °C
Temperature Resolution 1 °C
Sample Stage Dimension Ø 12.7 mm
Stage Material Alumina
Window * Ø 43 mm (Fused Silica)
Number of Probes in Standard Chamber ** 4, 8
Probe Module Piezo Driven XYZ module
Piezo Module Stroke (X ,Y, Z Axis) 8 × 8 × 3 mm
Piezo Module Holding Force 150 – 200 gf
Probe Tip Nextron 1k Probe
Probe Tip Diameter 250 µm
Vacuum Test 10E-3 mbar at RT (With Rotary Pump)
10E-4 mbar at RT (With Turbo Pump)
Vacuum & Vent Line Fitting Basic 1/4, 1/8" Swagelok Tube Fitting
Optional NW16
Leakage Current < 100 pA (Coaxial)
< 100 fA (Triaxial)
Maximum DC Voltage 300 V
Maximum Current 1000 mA
Maximum Frequency 300 MHz (< 3 dB)

* For comprehensive information on windows, please refer to the window selection guide for optical covers.
** Customization is available for the number of probes.

Dimension

(Unit: mm)
PZMPS-4ch's dimension top view
PZMPS-4ch's dimension 3D view
Top 3D
PZMPS-4ch's dimension Front view
PZMPS-4ch's dimension Right view
Front Right
Dimensions 4ch
W 180
D 99
H 33.3
(Unit: mm)
PZMPS-8ch's dimension top view
PZMPS-8ch's dimension 3D view
Top 3D
PZMPS-8ch's dimension Front view
PZMPS-8ch's dimension Right view
Front Right
Dimensions 8ch
H 33.3
A 220

Video

Technical Data

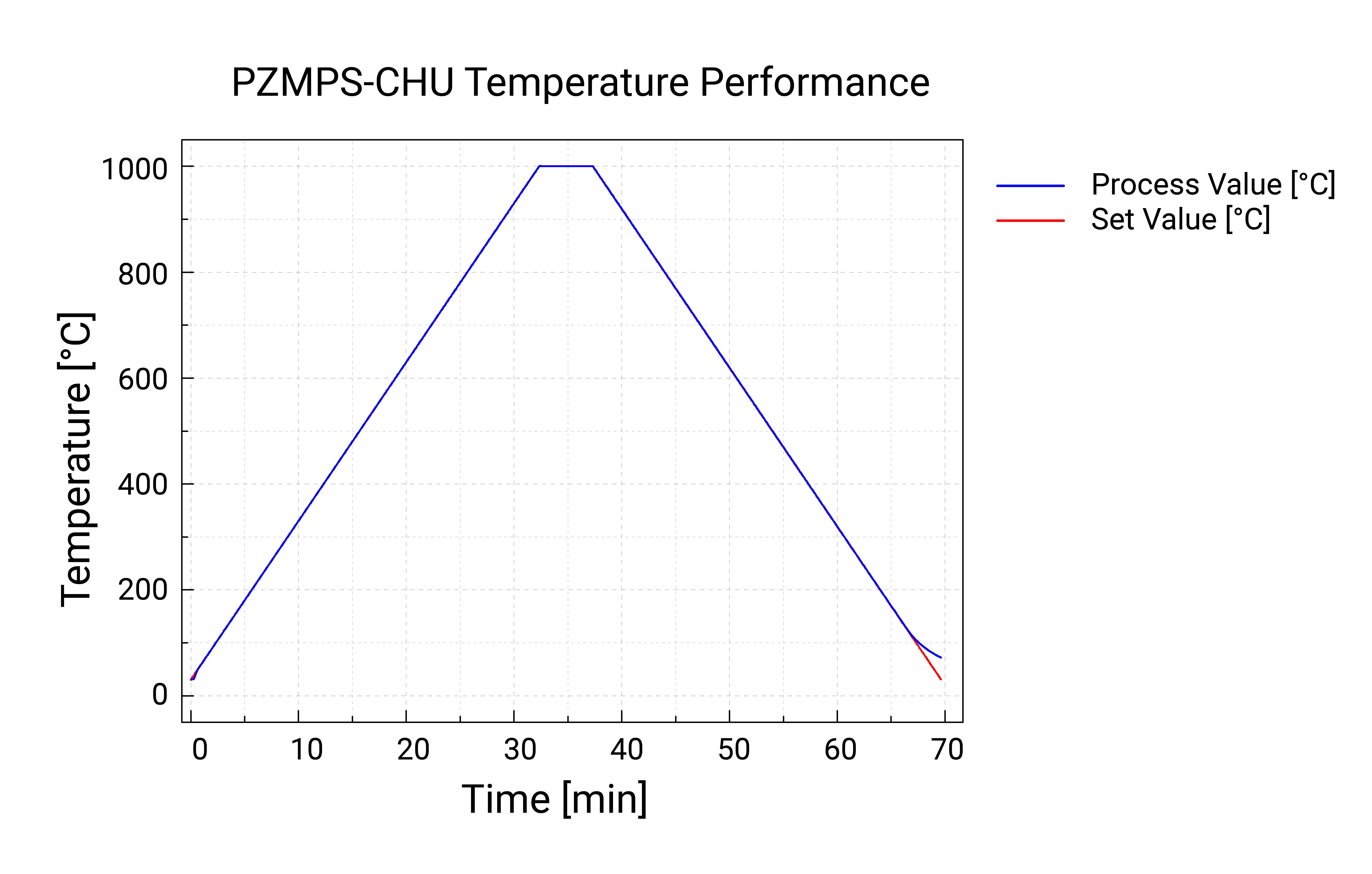

PZMPS-CHU Temperature performance

Figure.Temperature Performance of the PZMPS - CHU Model Across the Full Range of RT °C to 1000 °C
