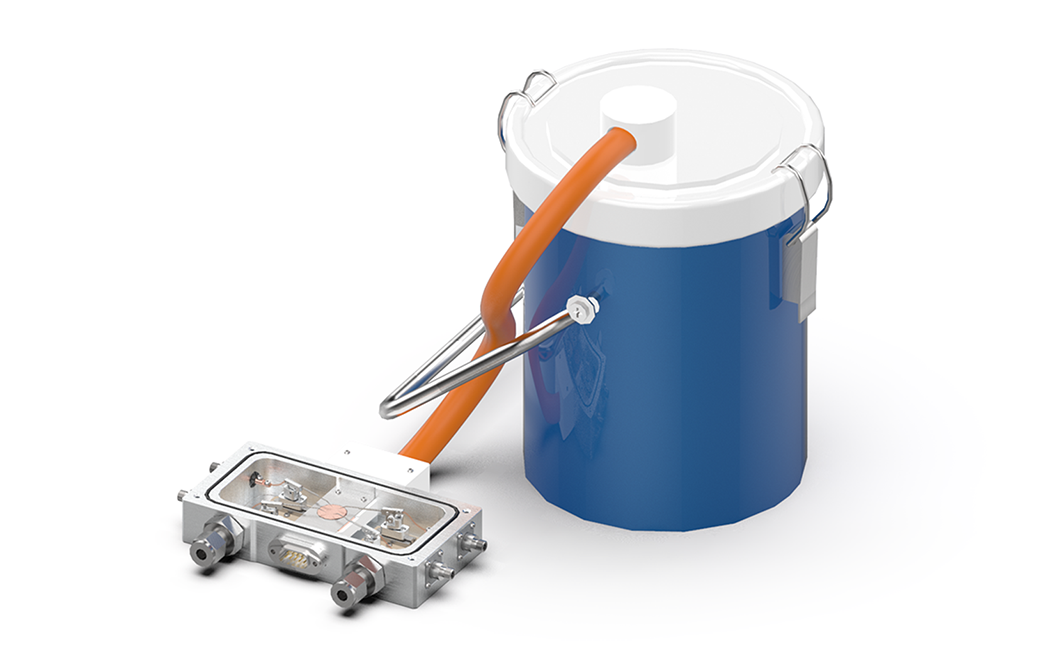

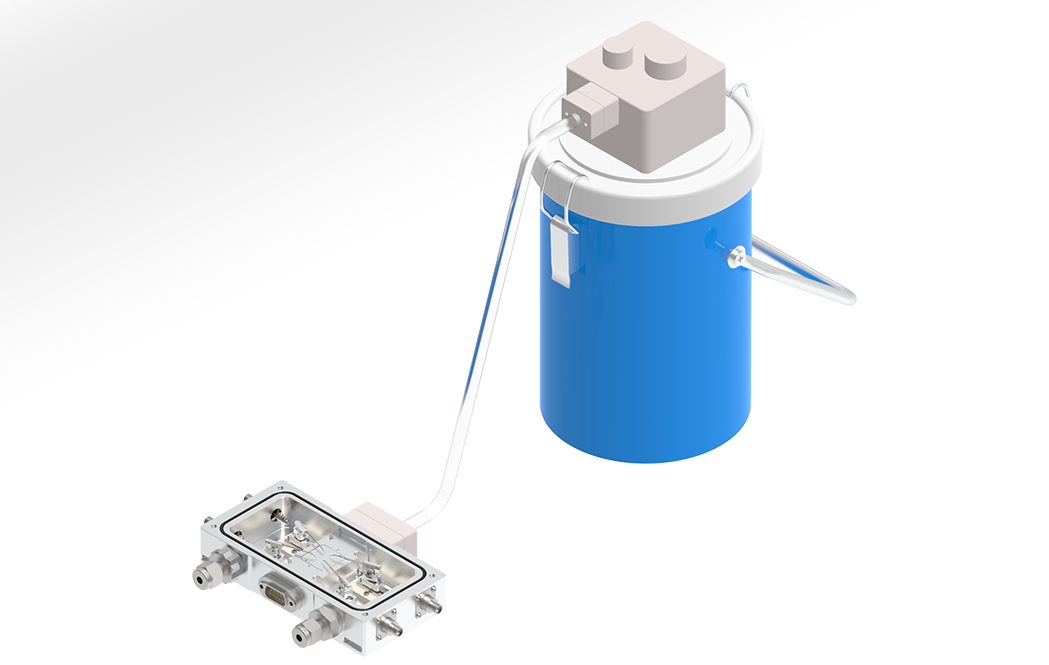

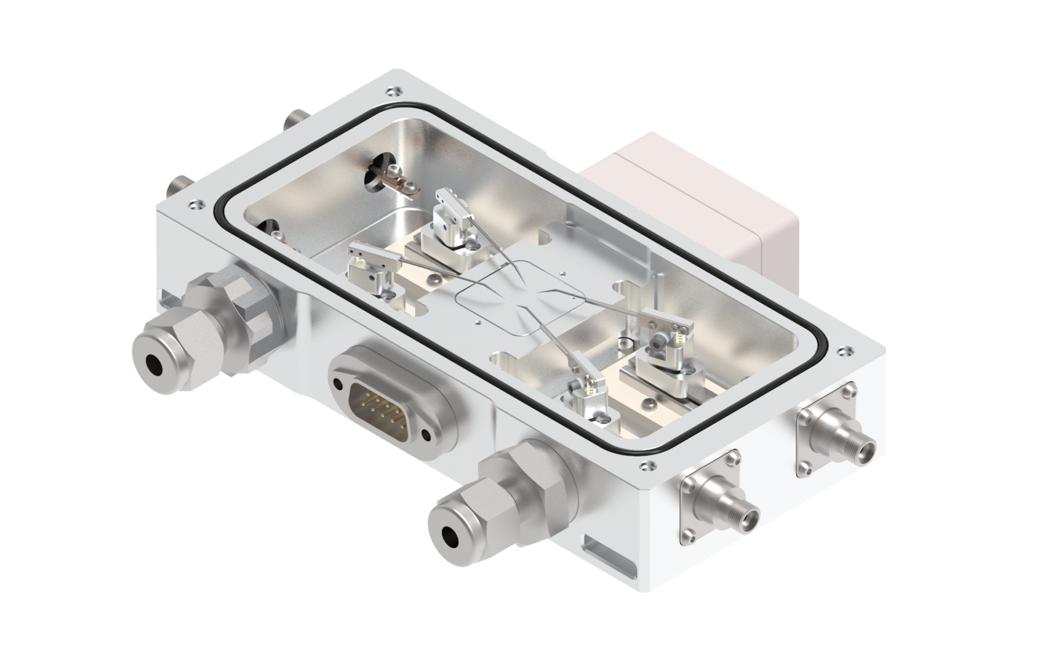

MPS-LN

Designed for ultra-low temperature experiments, supporting down to 80K with optimized LN2 circulation and vacuum control to prevent icing.

Temperature Range -193 – RT °C (80 K – RT )
Maximum Cooling / Heating Rate 20 °C/min
Temperature Accuracy ±1 °C
Temperature Resolution 0.1 °C
Sample Stage Dimension Ø 14 mm
Stage Material Copper
Window * Ø 43 mm (Fused Silica)
Number of Probes in Standard Chamber ** 4, 6, 8, 10, 13

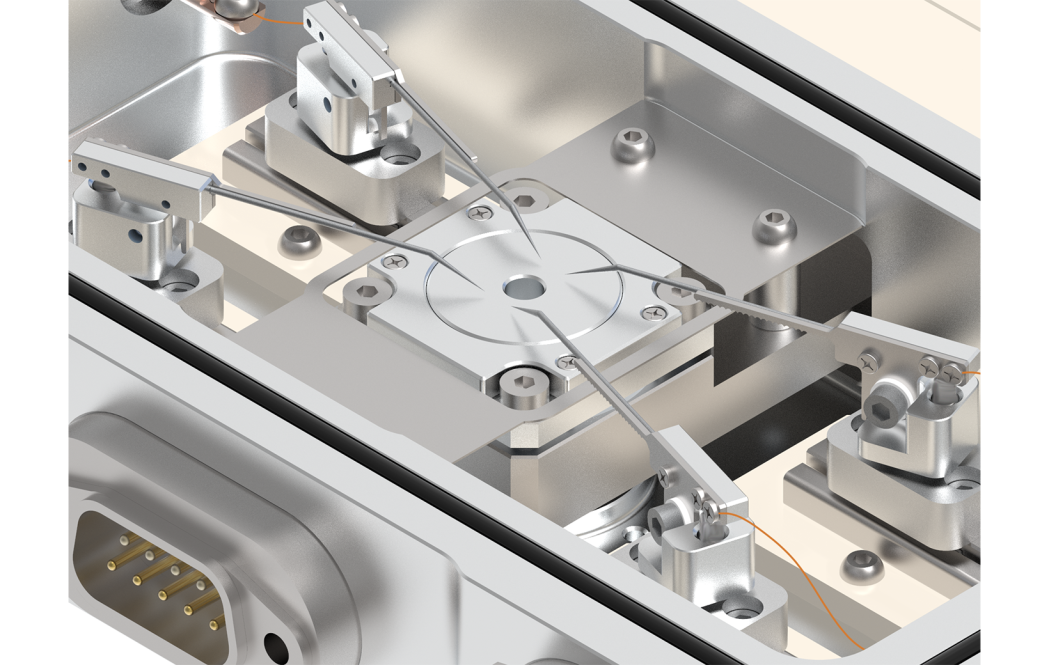

Probe Module Smart Tracking Probe
Probe Module Stroke (X-Axis) 12 mm
Probe Tip Tungsten Probe
Probe Tip Diameter 50 or 100 µm
Vacuum Test < 10E-3 mbar at RT (With Rotary Pump)
< 10E-4 mbar at RT (With Turbo Pump)
Vacuum & Vent Line Fitting Basic 1/4, 1/8" Swagelok Tube Fitting
Optional NW16
Leakage Current < 100 pA (Coaxial)
< 100 fA (Triaxial)
Maximum DC Voltage 300 V
Maximum Current 1000 mA
Maximum Frequency 300 MHz (< 3 dB)

* For comprehensive information on windows, please refer to the window selection guide for optical covers.
** Customization is available for the number of probes.

Dimension

(Unit: mm)
MPS-4ch's dimension top view
MPS-4ch's dimension 3D view
Top 3D
MPS-4ch's dimension Front view
MPS-4ch's dimension Right view
Front Right
Dimensions 4ch 6ch 8ch 10ch
W 140 140 140 180
D 70 80 99 99
H 30.3 30.3 30.3 30.3
(Unit: mm)
MPS-13ch's dimension top view
MPS-13ch's dimension 3D view
Top 3D
MPS-13ch's dimension Front view
MPS-13ch's dimension Right view
Front Right
Dimensions 13ch
H 30.3
A 160

Technical Data

MPS-LN Temperature performance

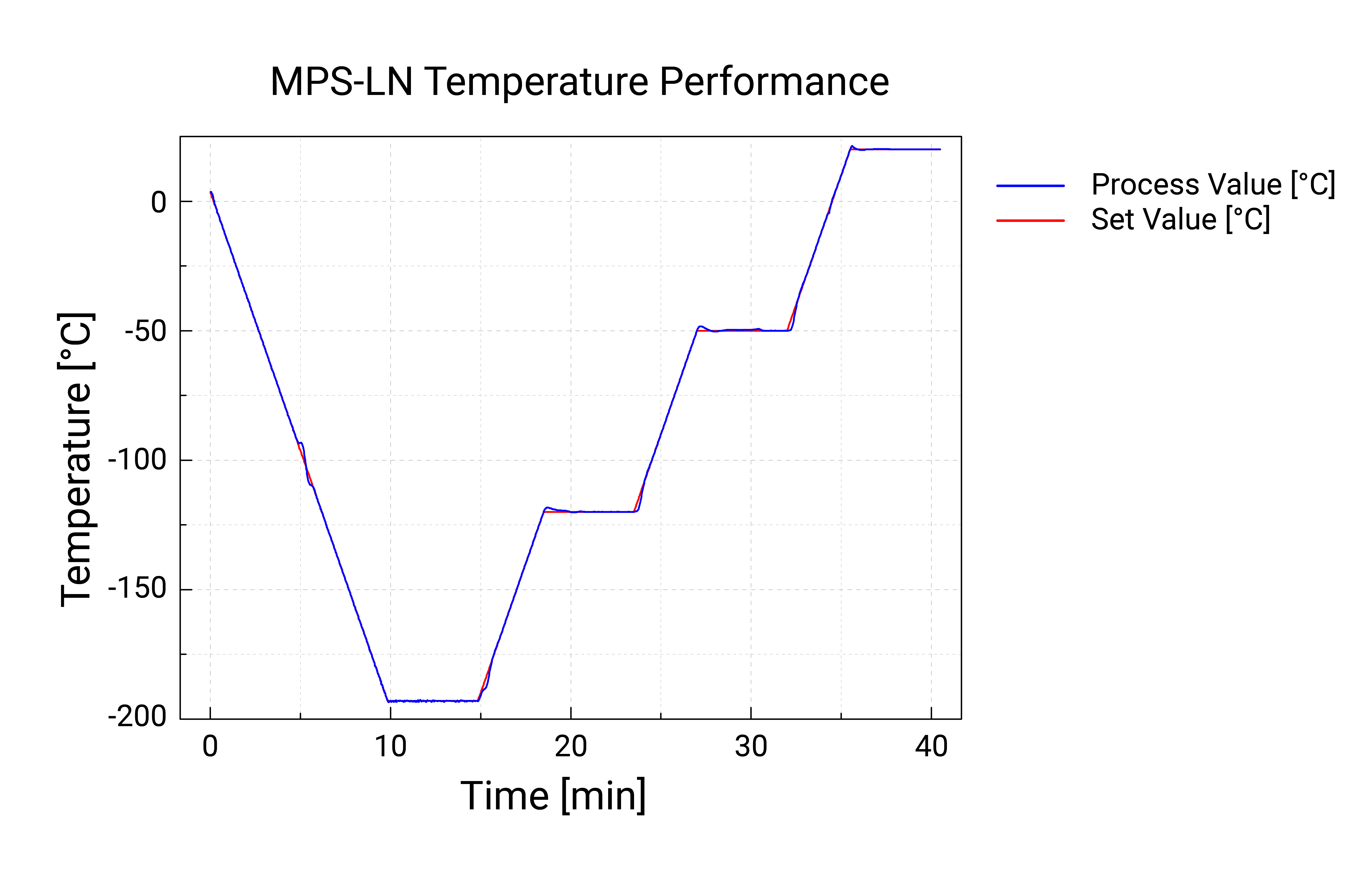

Figure.Temperature Performance of the MPS - LN Model Across the Full Range of RT °C to -193 °C (RT – 80 K)
