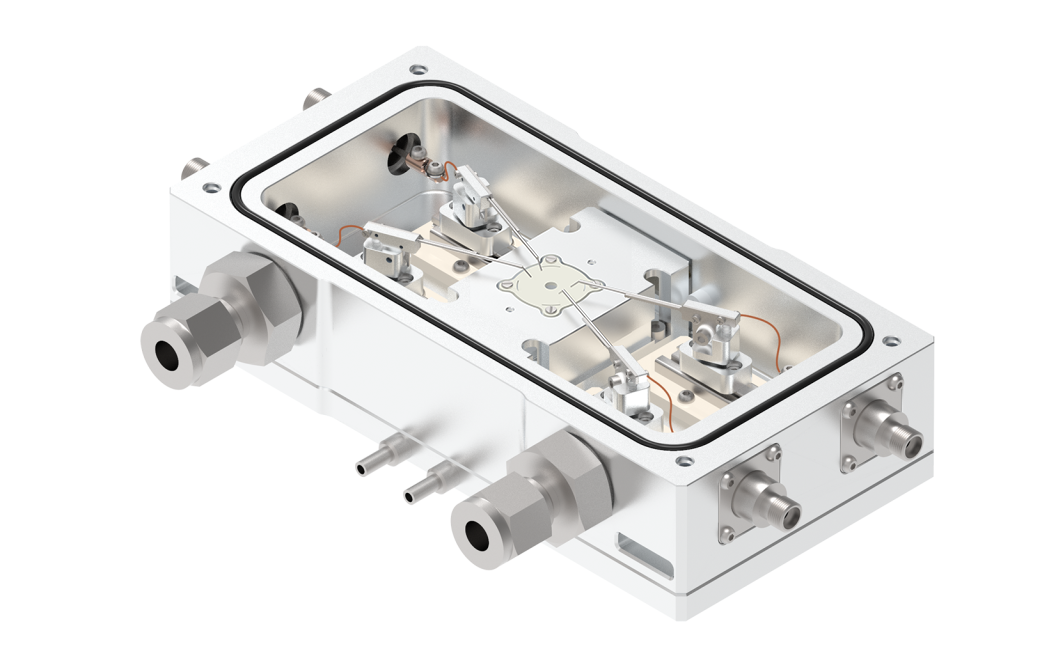

MPS-CHU
Designed for high-temperature measurements, supporting 1000°C with optical access for
enhanced analysis.
Temperature Range |
RT – 1000 °C |
Maximum Cooling / Heating Rate |
60 °C/min |
Temperature Accuracy |
±1 °C |
Temperature Resolution |
1 °C |
Sample Stage Dimension |
Ø 12.7 mm |
Stage Material |
Alumina |
Window * |
Ø 43 mm (Fused Silica)
|
Number of Probes in Standard Chamber **
|
4, 6, 8, 10, 13 |
Probe Module |
Smart Tracking Probe |
Probe Module Stroke (X-Axis) |
12 mm |
Probe Tip |
Nextron 1k Probe |
Probe Tip Diameter |
250 µm |
Vacuum Test |
< 10E-3 mbar at RT (With Rotary Pump)
|
< 10E-5 mbar at RT (With Turbo Pump)
|
Vacuum & Vent Line Fitting |
Basic |
1/4, 1/8" Swagelok Tube Fitting |
Optional |
NW16 |
Leakage Current |
< 100 pA (Coaxial)
|
< 100 fA (Triaxial)
|
Maximum DC Voltage |
300 V |
Maximum Current |
1000 mA |
Maximum Frequency
|
300 MHz (< 3 dB)
|
* For comprehensive information on windows, please refer to the window selection guide for optical
covers.
** Customization is available for the number of probes.
Dimension
Technical Data
Figure.Temperature Performance of the MPS - CHU Model Across the Full Range of RT °C to 1000 °C
